1888247-2
Manufacturer:
TE Connectivity
Mfr.Part #:
1888247-2
Datasheet:
Description:

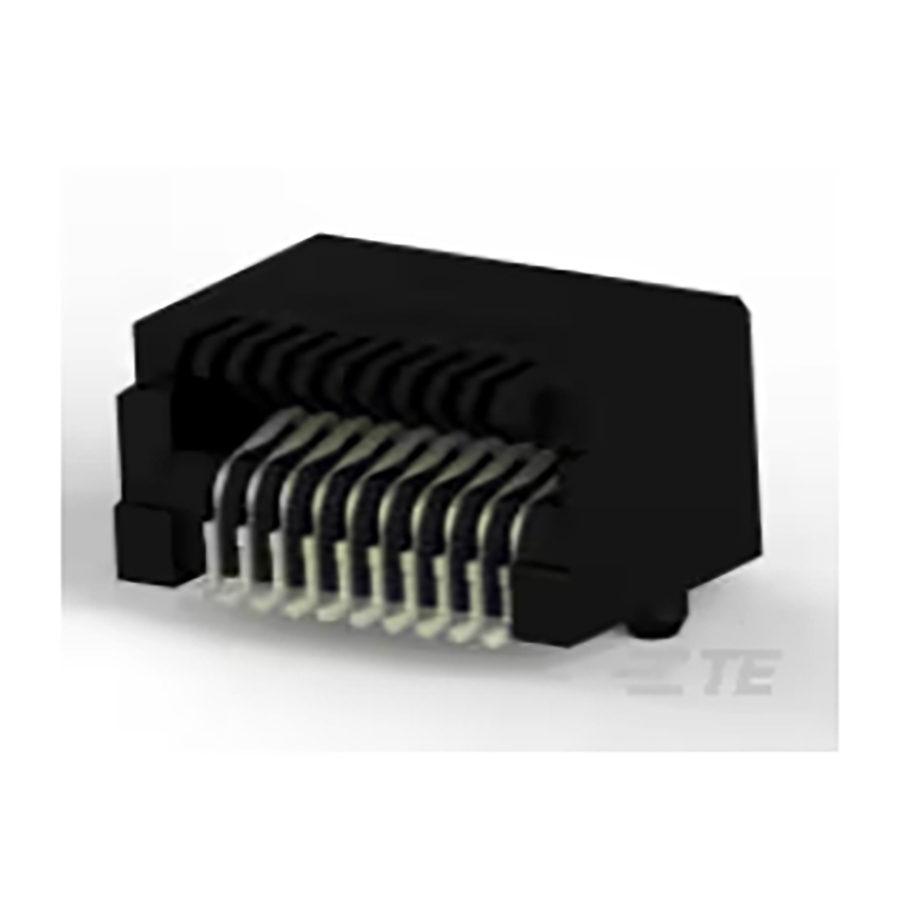

I/O Connectors SMD/SMT Male Receptacle Receptacle, SFP
| Parameter | Value |
|---|---|
| Length | 11 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 20 |
| Material | Liquid Crystal Polymer |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 800 µm |
| Max Current Rating | 500 mA |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | White |
| Gender | Male |
| Number of Contacts | 20 |
| ELV | Compliant |
| Data Rate | 16 Gbps |
| Connector Type | Receptacle, SFP |
| Number of Positions | 20 |
| Housing Material | Polymer |
| Connector Style | Receptacle |
| Number of Ports | 1 |
| Max Voltage Rating (AC) | 120 V |
| Housing Color | White, Black |
| Number of Positions Loaded | 20 |
| Plating Thickness | 380 nm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Sealable | No |
| Mounting Angle | Right Angle |
Stock: 36
Distributors
pcbx
pcbxUnit Price$1.04314
Ext.Price$1.04314
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.04314 | $1.04314 |
| 10 | $0.85334 | $8.53340 |
| 25 | $0.77481 | $19.37025 |
| 50 | $0.70350 | $35.17500 |
| 100 | $0.63875 | $63.87500 |
| 300 | $0.59983 | $179.94900 |
| 500 | $0.56328 | $281.64000 |
